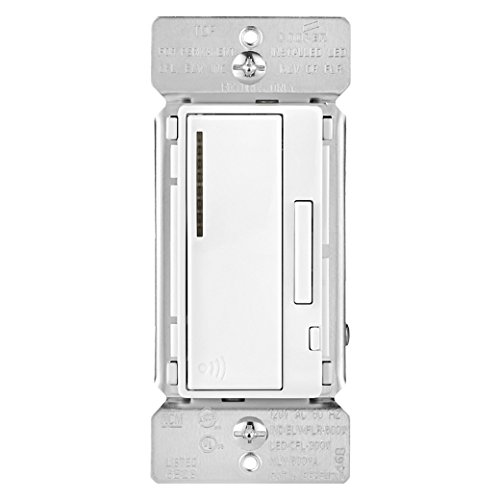

Aspire RF Accessory Smart Dimmer - Decorator White
Product Specifications
- Brand: Eaton
- Model Number: RF9542-ZDW
- Z-Wave Cart Number: ZC08-13010013
Downloads
Smart solutions
Aspire RF Accessory Dimmers replace regular switches or dimmers to provide local and remote ON/OFF/DIM/BRIGHT control. The device also provides multi-location control or virtual 3-way remote ON/OFF/DIM/BRIGHT control without the need for traditional 3-way wiring or a dedicated traveler wire. Aspire RF Accessory Dimmers provide other programmable functions (scenes, events, association, child lockout, etc.) when used with Aspire RF or other Z-Wave? compliant controller*. Each dimmer can be manually controlled and remotely controlled by commands sent from an Aspire RF controller (RFHDCSG, RFTDCSG, RFBER) or other Z-Wave compatible controllers or programs. Aspire RF Dimmers utilize existing 120V/AC 60Hz standard house wiring and fit in standard wallboxes. No new wiring is needed.
Features
- Device Categories: Dimming Lighting Devices,All Lighting Devices
- Supported Command Classes: Multilevel Switch,All Switch,Association,Configuration,Indicator,Switch Multilevel V2,Name/Location,Powerlevel,Protection,Scene Activation
- Controlled Command Classes: Switch Multilevel V2,Multilevel Switch, Basic
What's in the Box
- Z-Wave Accessory Dimmer
- Wire Nuts
- Instruction sheet
