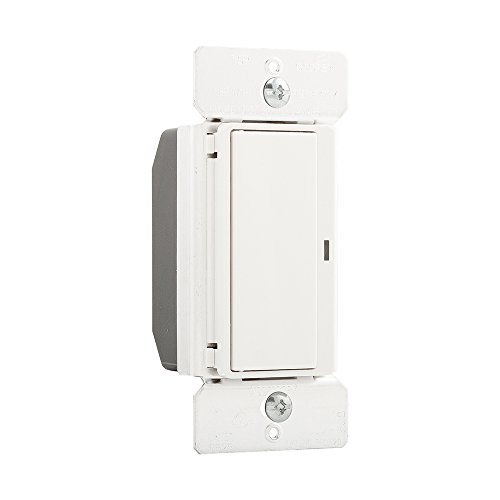

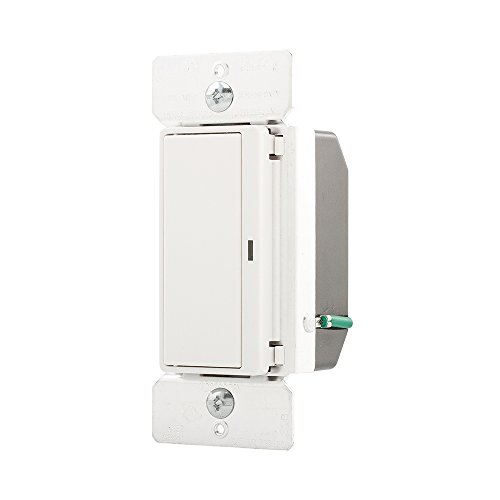

ASPIRE RF Receptacle Z-Wave Light Switch - White
13.00
Product Specifications
- Brand: Eaton
- Model Number: RF9520DW
Downloads
Smart solutions
The Eaton RF9520DW ASPIRE RF non-RF accessory switch replaces regular switches or dimmers to provide local on/off control. The device provides 3-way or multi-location on/off control with the use of traditional 3-way wiring. ASPIRE RF switches utilize existing 120V/AC, 60Hz standard house wiring and fit in standard wallboxes. No new wiring is needed.
Features
- Compatible with aspire RF master Switch (RF9518) for 3-way, multi-location control using traditional 3-way wiring or dedicated traveler wires (up to 3 locations).
- Cannot use association function, as this is a non-RF device - use traveler wires for 3-way application.
- Neutral wire is not required for installation of device.
- Decorator and designer series products offer the same functionality with two distinct styles.
- Electro-mechanical Push pad for on/off operation.
What's in the Box
- Accessory Switch
- Wire Nuts
- Instruction sheet
