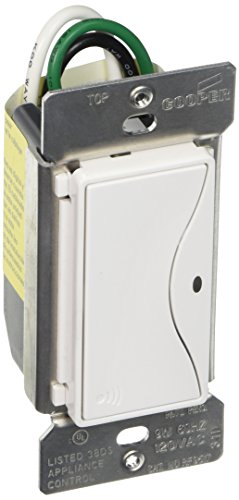

Aspire Z-Wave Accessory Switch - Alpine White
52.35
Product Specifications
- Brand: Eaton
- Model Number: RF9517AW
- Z-Wave Cart Number: ZC08-13010010
Downloads
Smart solutions
The ASPIRE Z-Wave Accessory Switch along with Eaton's RF9501 provides 3-way, multi-way on/off control of a selected Z-Wave switch without the need for traditional 3-way wiring. Each switch can be manually and remotely controlled by commands sent from a compatible Z-Wave smart hub.
Features
- Compatible with Z-Wave switches - RF9501.
- Neutral required for installation.
- Programmable delayed Off mode up to 4 minutes (default is 10 seconds).
- Single button programming.
- Patented indicator system alerts if dimmer is not set up in the network
- Can be associated with up to five other Z-Wave devices.
- Compatible with Eaton's Z-Wave switch (RF9501) for wireless 3-way control eliminating the need for traditional 3-way wiring (up to 5 locations).
- Blue LED illuminates to indicate On/Off status.
- Push pad for On/Off operation.
- Compatible with Aspire screwless wallplates.
What's in the Box
- Z-Wave Accessory Switch
- Wire Nuts
- Instruction sheet
